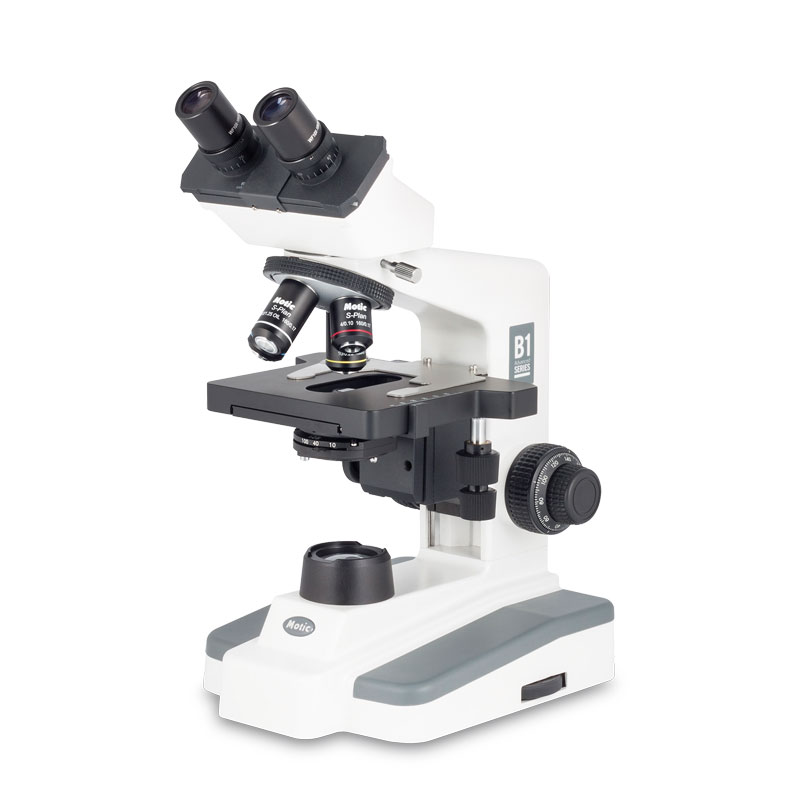

Motic B1-252 SP Upright Microscope

Superior in design and in performance, the B1 Series incorporates a wide range of features designed for university and laboratory use. Superb optical clarity and reliable mechanical engineering assures years of top performance. Choose from two grades of objectives: Standard Achromatic lenses deliver excellent clarity and normal flatness of field, while the ASC Achromatic Super Contrast objectives deliver extra contrast to the image. Combined with precision coaxial coarse and fine focusing adjustments, the B1 models are exceptionally high quality microscopes available within a tight budget.

Description

  • Binocular head, sliding type Inclination 45° inclined, 360º rotating
  • Finite optical system 160mm
  • Interpupillary distance of 55-75mm
  • Diopter adjustment On both tubes , +/- 5 diopter
  • Widefield eyepiece WF10X/18mm
  • Quadruple Nosepiece
  • SP Semi-Plan Achromatic, DIN
  • Objectives SP 4X/0.10 (WD 17.9mm), 10X/0.25 (WD 5.3mm), 40X/0.65/S (WD 0.61mm), 100X/1.25/S (WD 0.165mm)
  • Mechanical stage (140x135mm) with Travel range X&Y 76x40mm
  • Focusable Condenser 1.25 N.A. Abbe Condenser with iris diaphragm
  • Coaxial coarse and fine focusing system with tension adjustment Fine focus precision 2μm Focusing stroke 27mm Upper limit stop Upper limit stop preset but adjustable
  • Transmitted Illumination LED 3W with intensity control Transformer External Power supply 110-240V (CE) Accessories included Dust cover, immersion oil (5ml)
