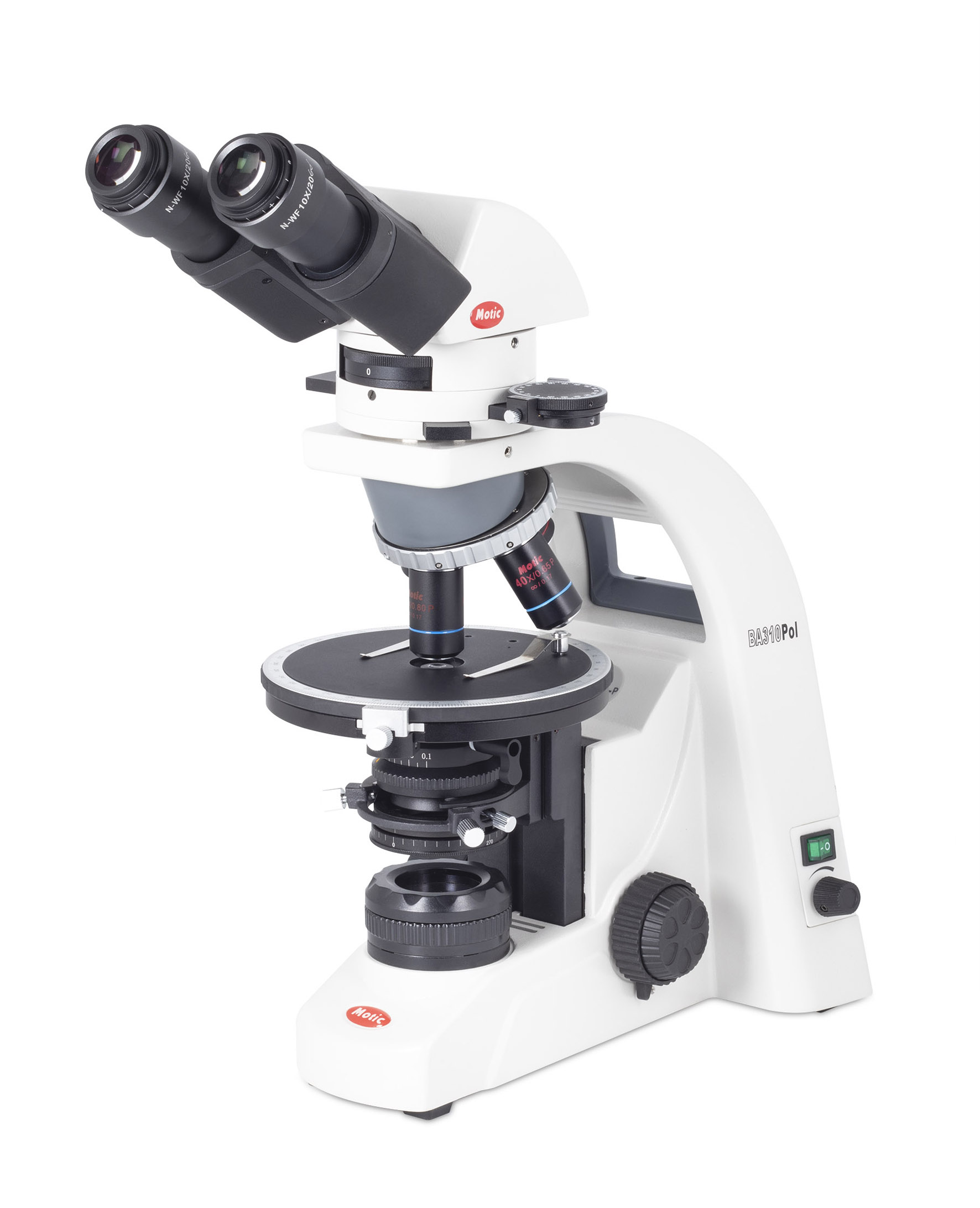

BA310 POL Trinocular Microscope

Based on the success of its popular BA Microscope Series for Bio-Medical applications, Motic is pleased to introduce the new BA310POL, an extremely powerful yet affordable Polarization microscope for Transmitted light samples.

The BA310POL is designed for the examination of birefringent samples from petrography and mineralogy, and can also be used for the synthetic materials industry where repeatable observations can be performed with efficiency and reliability. The BA310POL also works especially well in Educational applications of material professions, where affordability and ease-of-use are key requirements.



Description

  • Optical system Colour Corrected Infinity Optical System (CCIS®)
  • Observation tube: Trinocular head
  • Trinocular light split: 100:0/20:80
  • Inclination: 30° inclined
  • Interpupillary distance: 55-75mm
  • Widefield N-WF10X/20mm with diopter adjustment, +/- 5 diopter
  • Infinity Corrected CCIS EC Plan Achromatic Strain-free, DIN 45mm
  • 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65 (WD 0.5mm), 60X/0.8 (WD 0.35mm)
  • 360º circular rotating stage, 1º increments, 0.1º vernier scale and lockable
  • Stage size Ø160mm
  • Achromat swing out condenser NA 0.90/0.13; strain-free, with iris diaphragm
  • Illumination 6V/30W Halogen
